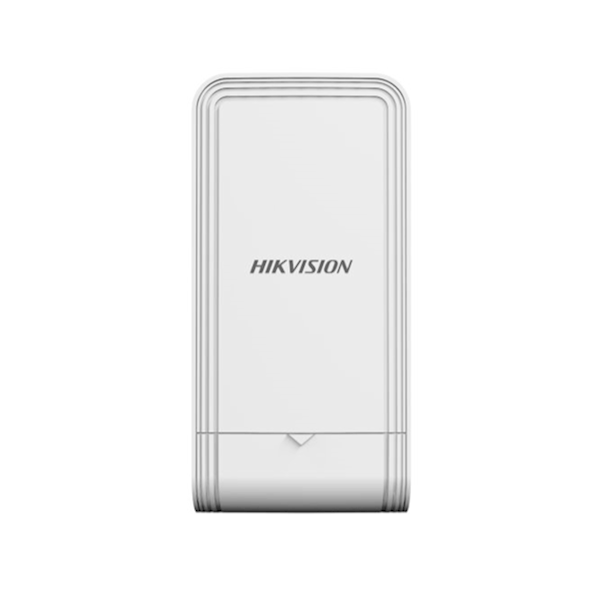

Hikvision, 5Ghz 867Mbps 5km Point to Point CPE
Draadloze Parameters
Max. transmissiesnelheid (via luchtinterface)
≤ 867 Mbps
Draadloze standaard
IEEE 802.11/a/n/ac
Werkfrequentieband
5150 MHz ~ 5250 MHz
5250 MHz ~ 5350 MHz
5470 MHz ~ 5725 MHz
5725 MHz ~ 5850 MHz
Antenneversterking
12dBi
Antennestraalbreedte:
Horizontaal: 35° (3 dB)
Verticaal: 35° (3 dB)
Zendvermogen
22 dBm (Let op: het zendvermogen kan verschillen per land/regio)
Ontvangstgevoeligheid:
-58 ±2 dBm @ AC80-MCS9
-84 ±2 dBm @ AC80-MCS0
Throughput Snelheid
Point-to-point
Max. 8 kanalen IPC (2MP) op max. 5 km afstand, max. 40 Mbps
Max. 40 kanalen IPC (2MP) op max. 1 km afstand, max. 200 Mbps
Point-to-multi-point
Max. 16 kanalen IPC (2MP) op max. 1 km, max. 80 Mbps binnen 35°
Ondersteunt 1 tot 8 PTMP verbindingen
Hardware Parameters
Netwerkinterfaces
2× RJ45 1000 Mbps
LED-indicatoren
Voeding, LAN, signaalsterkte
Resetknop
Hardware-reset
Voeding
12–24 VDC / 1 A Passieve PoE
Softwarefuncties
Toepassingsfuncties
TDMA, DFS, TPC, IFM, IPM
Kanaalbreedte
20/40/80 MHz
Kanaalselectie
Automatisch of handmatig
Netwerkprotocollen:
NTP (tijdsync)
SADP (automatische IP-detectie)
HTTPS (webbeheer)
SSH (debuggen)
Beveiligingsmodus
WPA2-PSK
Beveiligingsmechanisme
Verborgen SSID
Beheer
Webinterface, iVMS-4200, HCP
Firmware-upgrade
Via web, iVMS-4200 of HCP
Systeemlogboeken
Syslog, meldingen naar controlecentrum
Algemeen
Productafmetingen (B × H × D)
90,8 × 57,8 × 187,8 mm
Netto gewicht
0,307 kg
Inhoud verpakking
1 × Draadloze brug
1 × Voedingsadapter (12 VDC, 1 A)
2 × Bevestigingsband
1 × Snelstartgids
Verpakkingstype
Individueel verpakt
Bedrijfstemperatuur
-30°C tot 70°C
Bedrijfsluchtvochtigheid
5% – 95% (niet-condenserend)
Opslagtemperatuur
-40°C tot 85°C
Opslagluchtvochtigheid
5% – 95% (niet-condenserend)
Montagemethode
Bevestiging aan paal
IP-classificatie
IP55
Stroomverbruik
Typisch 2.65 W (bij 1 × 2MP IPC), maximaal 4.5 W
Certificeringen
EMC: CE-EMC, IC, RCM
Veiligheid
UL, CB, CE-LVD
Chemie
CE-RoHS, WEEE, REACH
Radio
EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17, FCC Part 15.247
